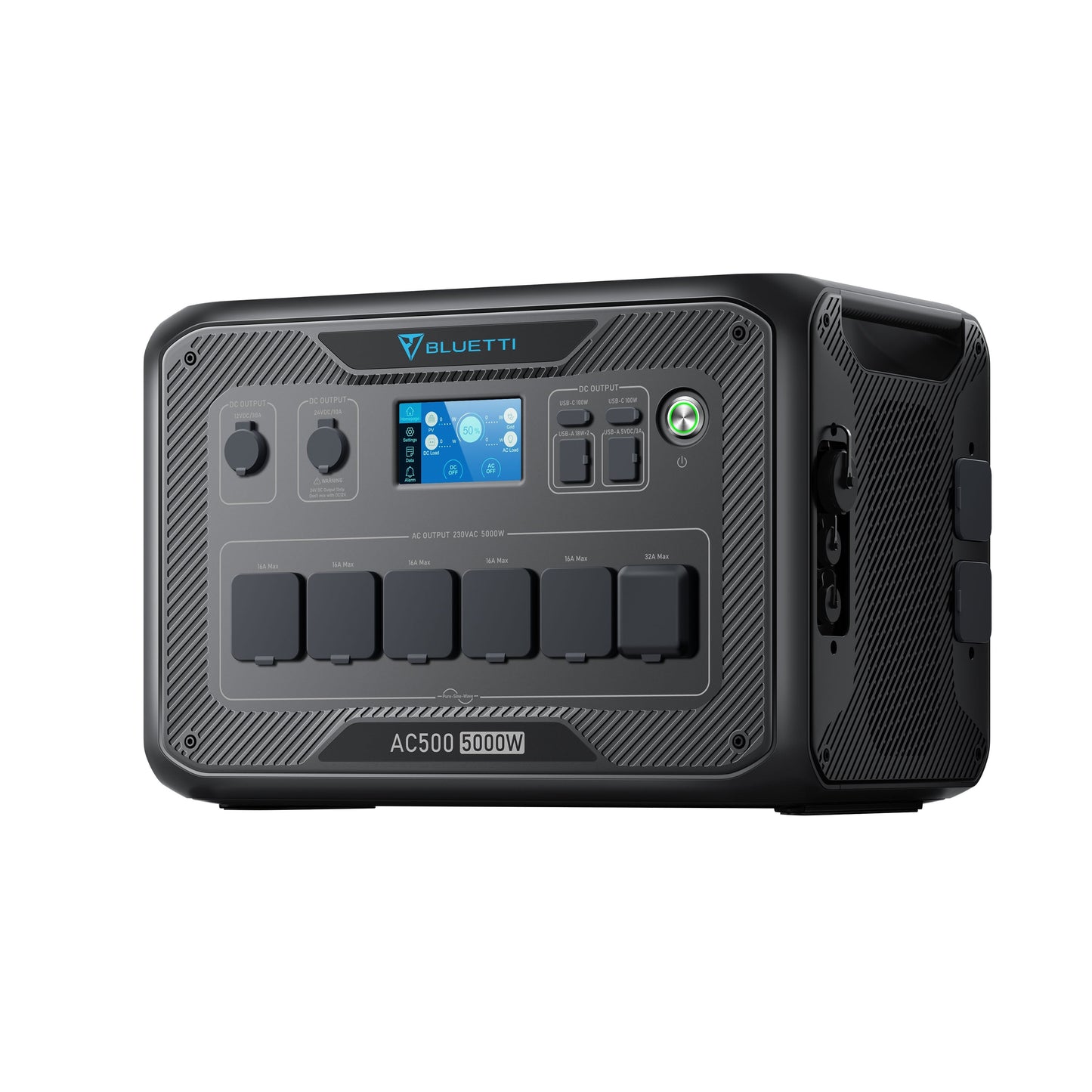

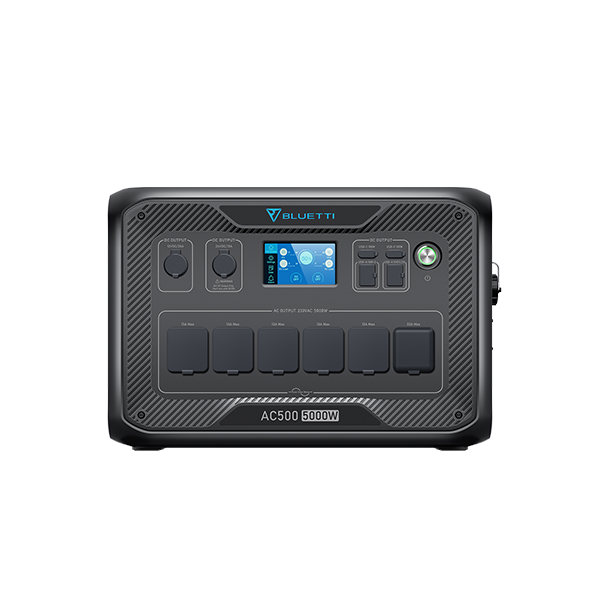

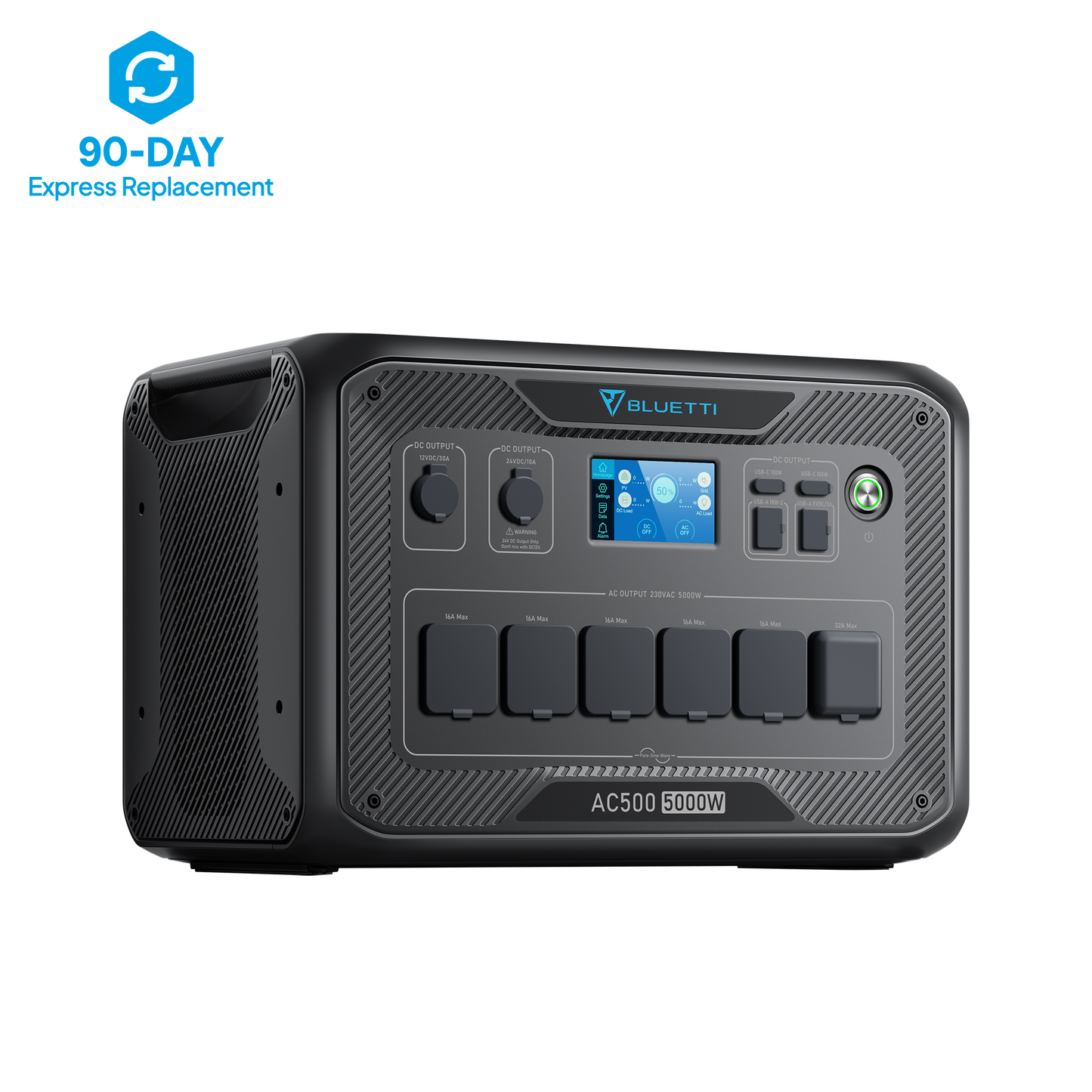

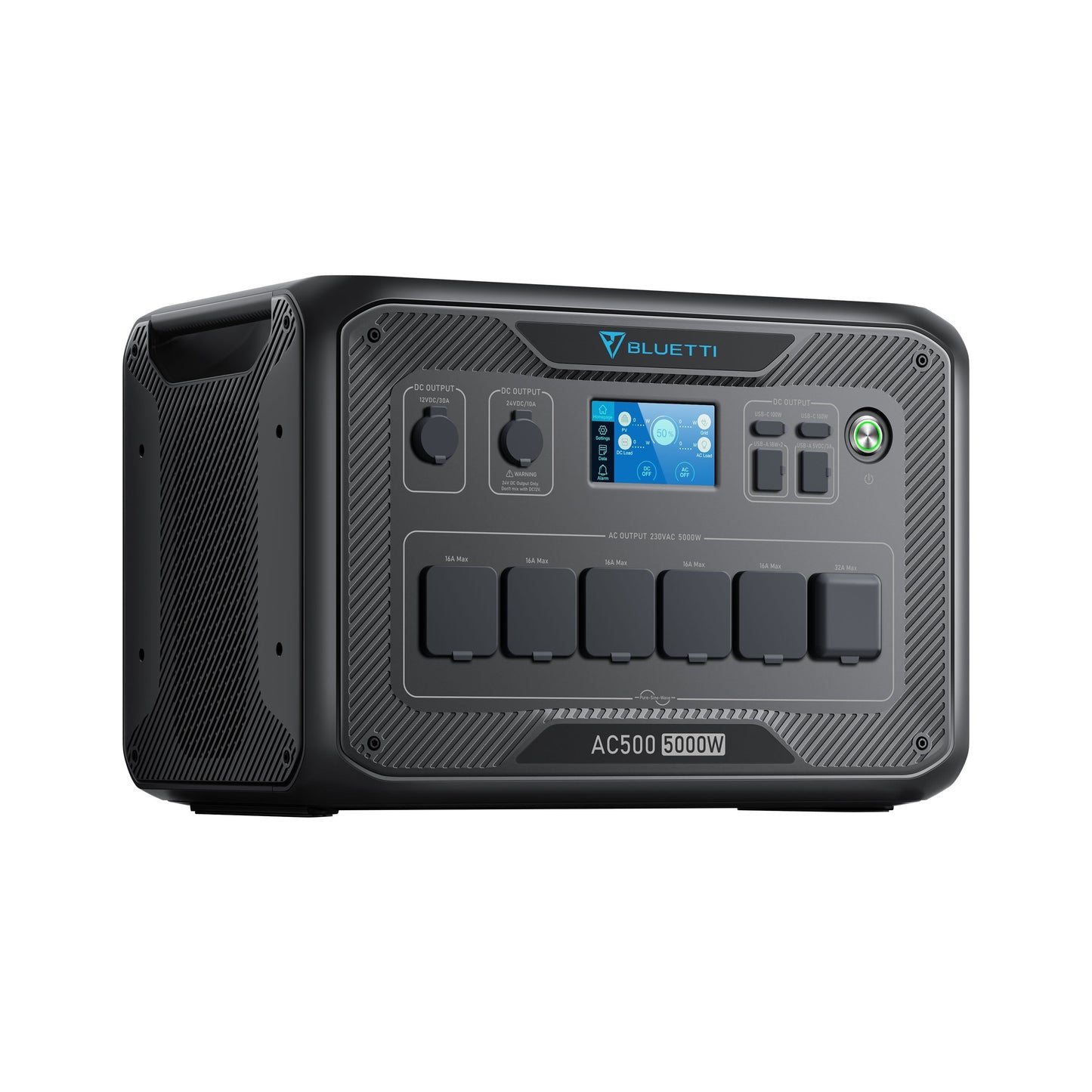

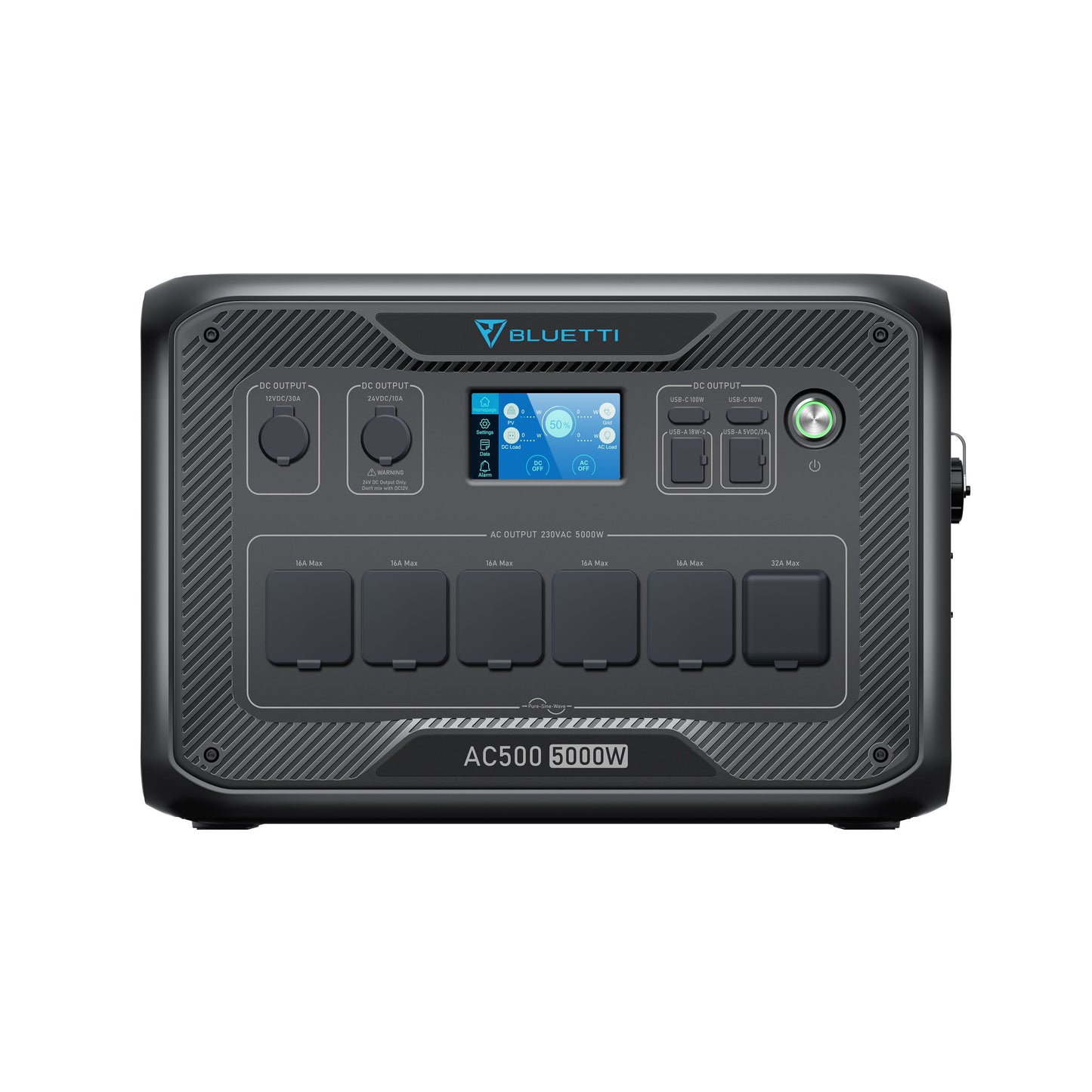

BLUETTI AC500 Inverter Module Generator | 5,000W

BLUETTI AC500 Inverter Module Generator | 5,000W (Requires The B300K to Work)

Features

• 5,000W Continuous Output (10,000W Surge Capacity)
• Scalable Storage: Customize from 2,764.8Wh up to 18,432Wh
• Long-Lasting LiFePO₄ Battery: 3,500+ Cycles to 80% Capacity
• Smart App Control via WiFi & Bluetooth for Easy Management
• 6 Charging Methods: AC, Solar, Car, Generator, Lead-Acid, or Dual Input (Dual AC / AC + Solar)
• 16 Output Ports to Power 99% of Your Devices
• Seamless Home Integration with 24/7 Uninterruptible Power Supply
• 4-Year Warranty for AC500 & B300S; 1-Year Coverage for Accessories

Why Choose BLUETTI AC500?

Charge Your Power, Your Way

- Plug into a standard wall outlet and supercharge your AC500 with up to 5,000W* of ultra-fast charging, fully juiced before your lunch break ends

- *Max. 3,000W with one B300K, up to 5,000W with two or more

- Harness the sun’s energy with up to 3,000W of solar input, clean, sustainable power that gives you true energy independence

- Combine AC and solar charging for an incredible 8,000W input, like fueling up two tanks at once for unmatched recharging speed

- Stay powered wherever you roam. With 12V/24V car charging, the AC500 can be topped up directly from your vehicle’s cigarette lighter port

AC Charging

Solar Charging

Dual Charging

Car Charging

Run Your Entire Household with Confidence

Unlock powerful performance with a solid 5,000W output, effortlessly meeting the high energy demands of your most power-hungry devices. From air conditioners and heavy-duty tools to large refrigerators, it handles tough startup loads with ease.

Power Option for Personalization

The AC500 features a fully modular design, allowing it to pair with up to 6 B300K expansion batteries (2,764.8Wh each) for a massive total capacity of 16,588.8Wh. Whether for everyday use or unexpected outages, it provides days of reliable power for your entire household.

Uninterrupted Outage Protection

With the AC500 seamlessly integrated into your home, you’ll have ample energy to support your daily routines with ease. From essential household appliances to high-demand devices like EV chargers, count on a reliable and consistent power supply that’s always ready when you need it most.

Power in Hand - App Control

Whether you're at home or on the go, the user-friendly app gives you full control monitor real-time energy usage, switch between operating modes, and update firmware effortlessly with just a few taps.

Tech Specs

Specifications

PREVIEW

BATTERY INFO

• Capacity: Works with B300s or B300, starts at 3072Wh

OUTPUT

• AC Outlets: 5 x 230V/16A, 1 x 230V/21A, 5,000W In Total
• Inverter Type: Pure Sine Wave
• Surge Power: 10,000W
• USB-C Port: 2 x 100W Max
• USB-A Port: 2 x 5V/3A USB-A, 2 x 18W USB-A
• DC Outlets: 1 x 12V/30A (RV Outlet), 1 x 24V (Car Outlet), *All Regulated
• Wireless Charging Pad: 2 x 15W Max. (For Each)

INPUT

• AC Charging Cable Input: 4,500W Max. (W/ 1*B300S), 5,000W Max. (W/ 2 or more B300S)
• Solar Input: 3,000W Max., VOC 12-150VDC, 15A
• Car Input: 12/24V from Vehicle Cigarette Lighter Port
• Max Input: 6,000W (W/ 1*B300S), 8,000W (W/ 2 or more B300S) with AC and Solar Input Simultaneously

GENERAL

• App Control: Yes, Wifi & Bluetooth
• Scalability: Expandable W/Up to 6 x B300S Or 4×B300
• Simultaneous Recharge & Discharge: Yes
• Weight: 66.2lbs (30kg)
• Dimensions (LxWxD): 20.5 x 12.8 x 14.1in ( 52 x 32.5 x 35.8cm)
• Operating Temperature: -4-104℉ (-20-40℃)
• Storage Temperature: -4-104℉ (-20-40℃)
• Certification: UL2743, UKCA, TELEC, RCM, FCC ID, CE
• Warranty: 4 Years

NOTE

32A is the specification of the socket, so the current will not be reached under the rated output of 5000W. But a larger socket margin is required to ensure stable output under high-power surge power.
